Name: High Density Polyethylene HDPE Geocell Reinforcement
SKU: 0



After-sales Support

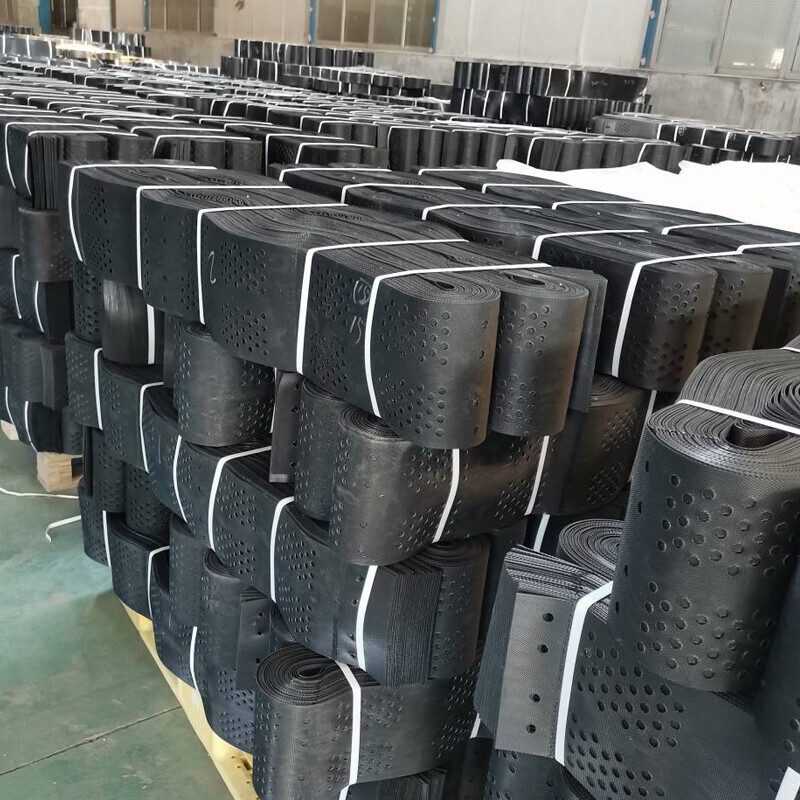

High Density Polyethylene HDPE Geocell Reinforcement

Geocell is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet. It is flexible to fold during transportation, stretching out and being filled with stone or concrete during service, and forming into structure with powerful lateral confinement and rigidity.

Phone : +86 13370510394

Email : contact@zonghuimaterial.com

Wechat : +86 13370510394

Whatsapp: +86 13370510394

Product Description

Application

1.Geocell can be used as cushion coat to strengthen loading capacity of weak ground.

2.Geocell can be paved in slope as slope protection structure.

3.Geocell can be used to build the support block structure.

Specification

Item Model	Height (mm)	Welding distance(mm)	Sheet thickness(mm)		Seam peel strength≥(N)	Expanded Cell Size(mm)	Expanded panel size (m)
Item Model	Height (mm)	Welding distance(mm)	smooth	textured	Seam peel strength≥(N)	Expanded Cell Size(mm)	Expanded panel size (m)
TGLG-100-330	100	330	1.1	1.5	1420	244X203	2.44X6.15
TGLG-150-330	150				2130	244X203	2.44X6.15
TGLG-200-330	200				2840	244X203	2.44X6.15
TGLG-100-356	100	356	1.1	1.5	1420	259X224	2.56X6.52
TGLG-150-356	150				2130	259X224	2.56X6.52
TGLG-200-356	200				2840	259X224	2.56X6.52
TGLG-100-400	100	400	1.1	1.5	1420	295X250	4X5
TGLG-150-400	150				2130	295X250	4X5
TGLG-200-400	200				2840	295X250	4X5
TGLG-100-445	100	445	1.1	1.5	1420	320X287	2.56X8.35
TGLG-150-445	150				2130	320X287	2.56X8.35
TGLG-200-445	200				2840	320X287	2.56X8.35
TGLG-100-660	100	660	1.1	1.5	1420	488X406	2.44X12.29
TGLG-150-660	150				2130	488X406	2.44X12.29
TGLG-200-660	200				2840	488X406	2.44X12.29
TGLG-100-712	100	712	1.1	1.5	1420	508X475	2.56X13.72
TGLG-150-712	150				2130	508X475	2.56X13.72
TGLG-200-712	200				2840	508X475	2.56X13.72
